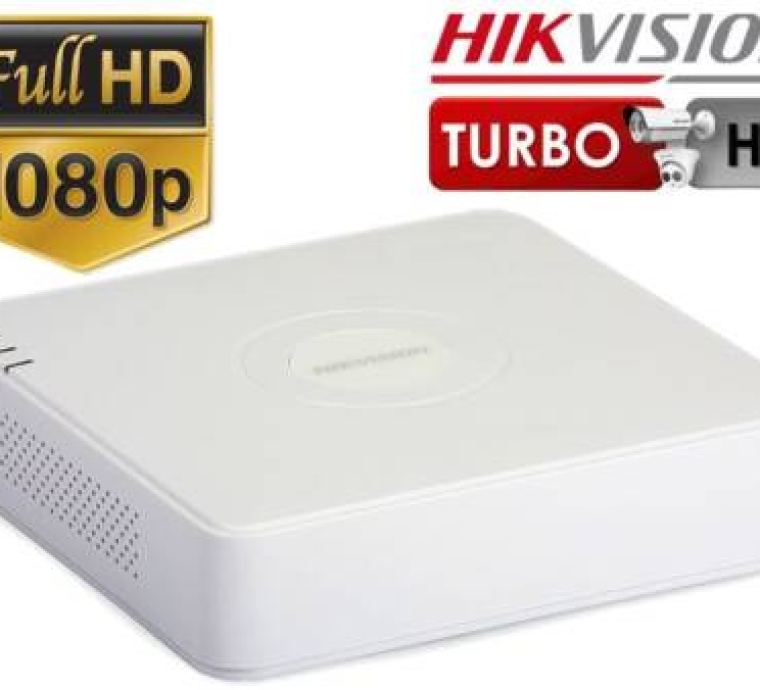

DS-7108HQHI-K1 Turbo HD DVR
Địa chỉ: Số 29, Ấp Năm Trại, Xã Trường Đông, Thị xã Hoà Thành, Tỉnh Tây Ninh
Hotline hỗ trợ
0949009352Hotline kỹ thuật
0949009352
DS-7108HQHI-K1 Turbo HD DVR
Ngày đăng sản phẩm: 04/06/2023 07:36 PM
| VIDEO/AUDIO INPUT | ||
|---|---|---|
| Audio Input: | | | 1-ch |
| Video Compression: | | | H.265+/H.265/H.264+/H.264 |
| Analog and HD-TVI video input: | | | 8-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
| Supported camera types: | | | 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 Note: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1. Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz Support CVI input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz support CVBS input |
| Video Input Interface: | | | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression: | | | G.711u |
| Audio Input Interface: | | | RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio: | | | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
| VIDEO/AUDIO OUTPUT | ||
| HDMI/VGA Output: | | | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution: | | | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF |
| Frame Rate: | | | Main stream: When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3 MP@15fps 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Video Bit Rate: | | | 32 Kbps-6 Mbps |
| Stream Type: | | | Video/Video&Audio |
| Audio Output: | | | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate: | | | 64kbps |
| Dual Stream: | | | Support |
| Playback Resolution: | | | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
| Synchronous Playback: | | | 8-ch |
| NETWORK MANAGEMENT | ||
| Remote connections: | | | 128 |
| Network protocols: | | | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| HARD DISK DRIVER | ||
| Interface Type: | | | 1 SATA Interface |
| Capacity: | | | Up to 6 TB capacity for each disk |

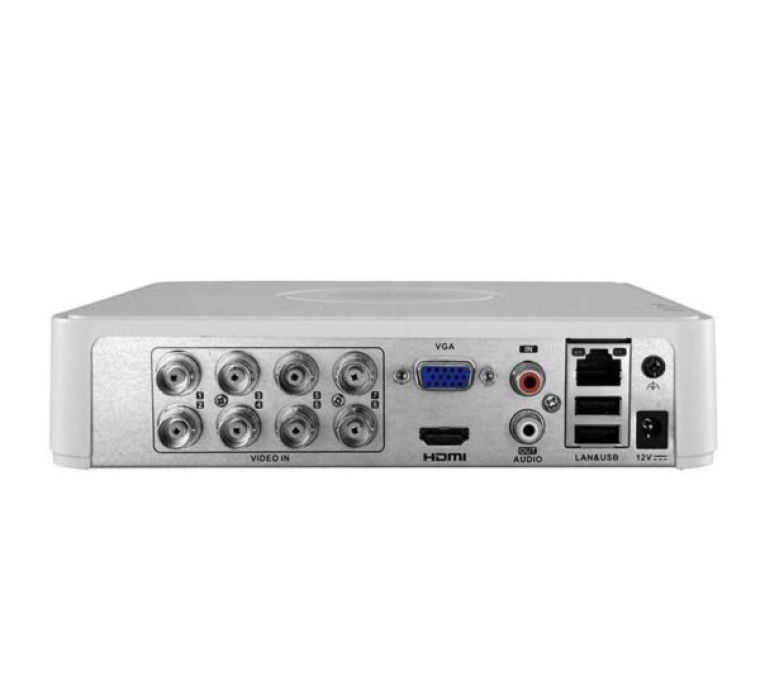

| EXTERNAL INTERFACE | ||
| Network Interface: | | | 1; 10M / 100M self-adaptive Ethernet interface |
| USB Interface: | | | 2 USB 2.0 Interfaces |
| GENERAL | ||
| Power Supply: | | | 12V DC |
| Consumption: | | | ≤ 12W(without hard disks) |
| Working Temperature: | | | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working Humidity: | | | 10% ~ 90% |
| Chassis: | | | Mini 1U chassis |
| Dimensions: | | | 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) |
| Weight: | | | ≤ 1 kg (2.2 lb) |
-
Liên hệ
-
- +
-
395
DS-7108HQHI-K1 Turbo HD DVR
• H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
• Up to 3 MP resolution for recording of channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1
•Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
• Up to 2-ch 4 MP IP cameras input
• Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
• 4/8/16-ch synchronous playback
